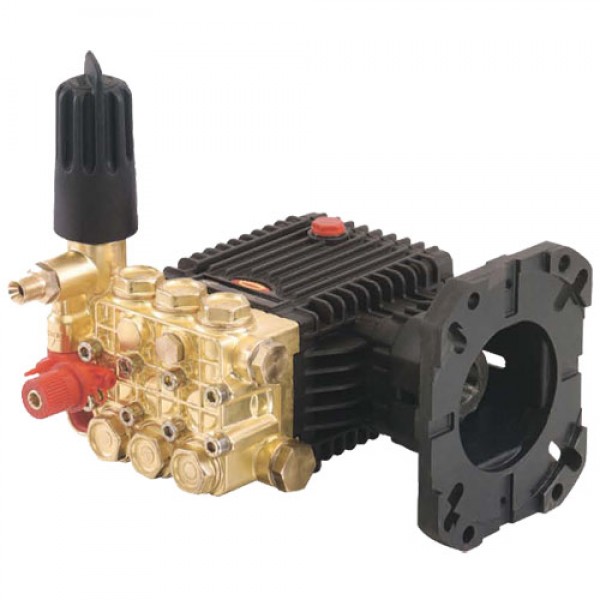

GP TX1510G8UIA Pressure Washer Pump 3000 PSI 4 GPM by General Pump

Product Code: TX1510G8UIA
Availability: Factory-Direct
Price: $339.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty
3400 RPM 1” Horizontal Shaft with SAE J609 gasoline engine mounting flange
Specifications
Manufacturer - model General Pump - TX1510G8UIA
Grade Triplex Plunger Pump
Max GPM 4
Max PSI 3000
Inlet Port 1/2” - 14 BSPP-F
Discharge Port 1/4-19 BSPP-F
Speed 3400
Flange / Shaft 1” Horizontal Shaft with SAE J609 gasoline engine mounting flange
Bore (mm) 15
Stroke (mm) 10
Max LMP 15.12
Max Bar 207
Power EBHP 8.24
Oil Capacity 14 oz
Max Inlet Temperature 165°F
Pump dimensions L x W x H (in.) x x
Ship weight: 18.2 lbs / 8.26 kg
Warranty Limited 1 year

Download documents:

TX1510G8UIA Pressure washer pump datasheet
