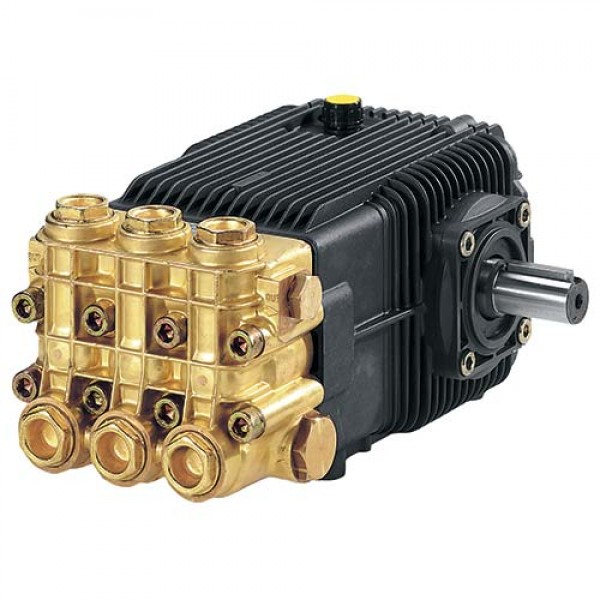

AR XWF36.17N Pressure Washer Pump 2500 PSI 9.51 GPM by AR North America

Product Code: XWF36.17N
Availability: Factory-Direct
Price: $792.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty
XWF series 1000 RPM N version 24 mm Solid shaft
Manufacturer - model AR North America - XWF36.17N
Grade Industrial Triplex Plunger Pump
Max GPM 9.51
Max PSI 2500
Inlet Port 3/4"F
Discharge Port 3/8"F
Speed 1000
Flange / Shaft N version 24 mm Solid shaft
Bore (mm) 28
Stroke (mm) 19.8
Max LMP 36
Max Bar 170
Power EBHP 15
Oil Capacity 32 oz
Max Inlet Temperature 140°
Pump dimensions L x W x H (in.) x x
Ship weight: 34 lbs / 15.42 kg
Warranty Limited 1 year

Download documents:

XWF36.17N Pressure washer pump datasheet
