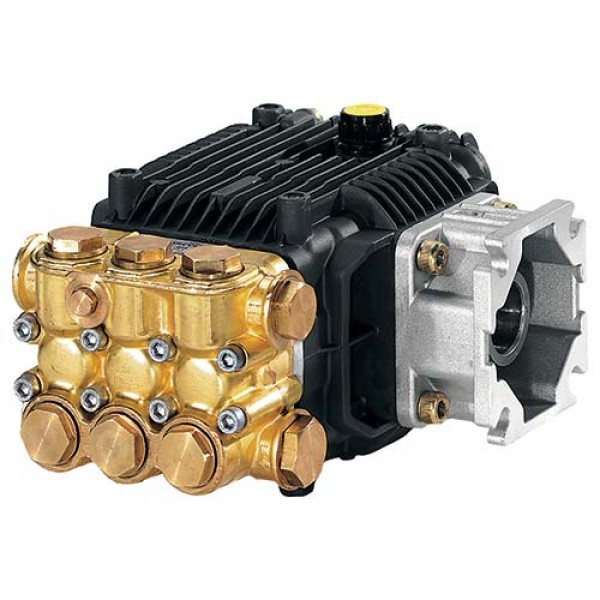

AR XMV3G25D-F25 Pressure Washer Pump 2500 PSI 3 GPM by AR North America

Product Code: XMV3G25D-F25
Availability: Factory-Direct
Price: $314.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty
XMV series 3400 RPM D version 3/4" Hollow shaft with F25 flange
Specifications
Manufacturer - model AR North America - XMV3G25D-F25
Grade Industrial Triplex Plunger Pump
Max GPM 3
Max PSI 2500
Inlet Port 1/2"F
Discharge Port 3/8"F
Speed 3400
Flange / Shaft D version 3/4" Hollow shaft with F25 flange
Bore (mm) 15
Stroke (mm) 7.6
Max LMP 11.4
Max Bar 170
Power EBHP 5
Oil Capacity 14.6 oz
Max Inlet Temperature 140°
Pump dimensions L x W x H (in.) x x
Ship weight: 15 lbs / 6.8 kg
Warranty Limited 1 year

Download documents:

XMV3G25D-F25 Pressure washer pump datasheet
