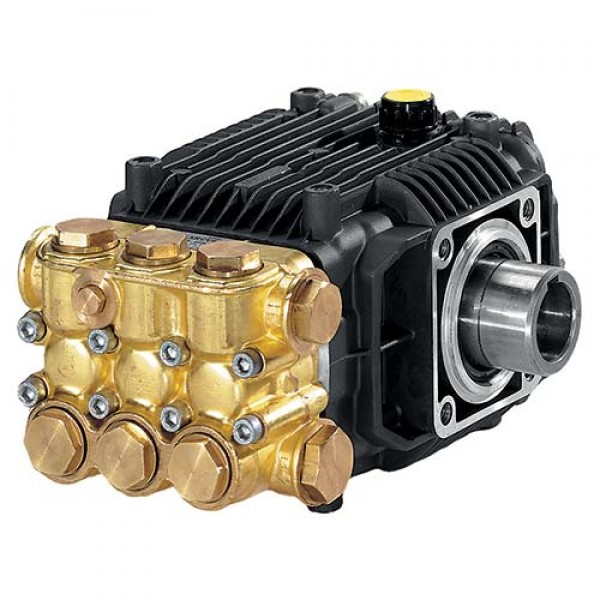

AR XMV3.5G25D-F33 Pressure Washer Pump 2500 PSI 3.5 GPM by AR North America

Product Code: XMV3.5G25D-F33
Availability: Factory-Direct
Price: $322.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty
XMV series 3400 RPM D version 3/4" Hollow shaft with F33 flange
Specifications
Manufacturer - model AR North America - XMV3.5G25D-F33
Grade Industrial Triplex Plunger Pump
Max GPM 3.5
Max PSI 2500
Inlet Port 1/2"F
Discharge Port 3/8"F
Speed 3400
Flange / Shaft D version 3/4" Hollow shaft with F33 flange
Bore (mm) 15
Stroke (mm) 8.2
Max LMP 13.2
Max Bar 170
Power EBHP 5.5
Oil Capacity 14.6 oz
Max Inlet Temperature 140°
Pump dimensions L x W x H (in.) x x
Ship weight: 16 lbs / 7.26 kg
Warranty Limited 1 year

Download documents:

XMV3.5G25D-F33 Pressure washer pump datasheet
