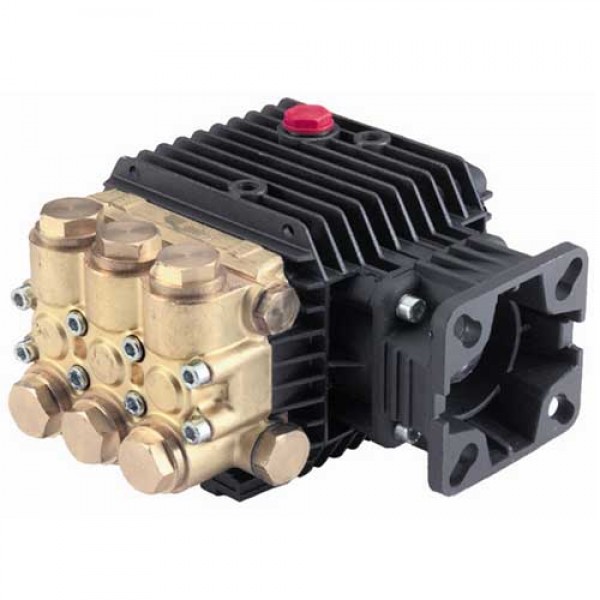

GP TP2520J34 Pressure Washer Pump 2500 PSI 1.9 GPM by General Pump

Product Code: TP2520J34

Availability: Factory-Direct

Zoom

Price: $503.00

(0/5)

Qty:

Images are for illustrative purposes only - the actual products may differ.

FREE GROUND SHIPPING On all pressure washers

TAX-FREE All states

Authorized dealer All items are covered by manufacturer's warranty

Description Reviews (0)

3400 RPM 3/4â Hollow shaft with SAE J609 Gasoline Engine Flange

Specifications

Manufacturer - model	General Pump - TP2520J34
Grade	Triplex Plunger Pump with solid ceramic plungers
Max GPM	1.9
Max PSI	2500
Inlet Port	3/8-19 BSPP-F
Discharge Port	1/4-19 BSPP-F
Speed	3400
Flange / Shaft	3/4â Hollow shaft with SAE J609 Gasoline Engine Flange
Bore (mm)	15
Stroke (mm)	5
Max LMP	7.182
Max Bar	172.5
Power EBHP	3.26
Oil Capacity	11.0 oz.
Max Inlet Temperature	165Â°F
Pump dimensions L x W x H (in.)	x x
Ship weight:	11.4 lbs / 5.17 kg
Warranty	Limited 1 year

Download documents:

TP2520J34 Pressure washer pump datasheet
