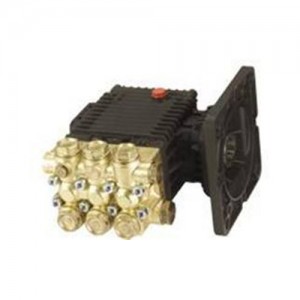

GP EZ2536EL Pressure Washer Pump 2500 PSI 3.6 GPM by General Pump

Product Code: EZ2536EL
Availability: Factory-Direct
Price: $462.00

Images are for illustrative purposes only - the actual products may differ.

+ FREE GROUND SHIPPING On all pressure washers
+ TAX-FREE All states
+ Authorized dealer All items are covered by manufacturer's warranty
1750 RPM 1-1/8”Left Hollow shaft with NEMA 184C mounting flange
Specifications
Manufacturer - model General Pump - EZ2536EL
Grade Triplex Plunger Pump
Max GPM 3.6
Max PSI 2500
Inlet Port 1/2-14 BSPP-F
Discharge Port 3/8-19 BSPP-F
Speed 1750
Flange / Shaft 1-1/8”Left Hollow shaft with NEMA 184C mounting flange
Bore (mm) 18
Stroke (mm) 11
Max LMP 13.608
Max Bar 172.5
Power EBHP 6.18
Oil Capacity 14.0 oz.
Max Inlet Temperature 165°F
Pump dimensions L x W x H (in.) x x
Ship weight: 18.5 lbs / 8.39 kg
Warranty Limited 1 year

Download documents:

EZ2536EL Pressure washer pump datasheet
